$24,995.00

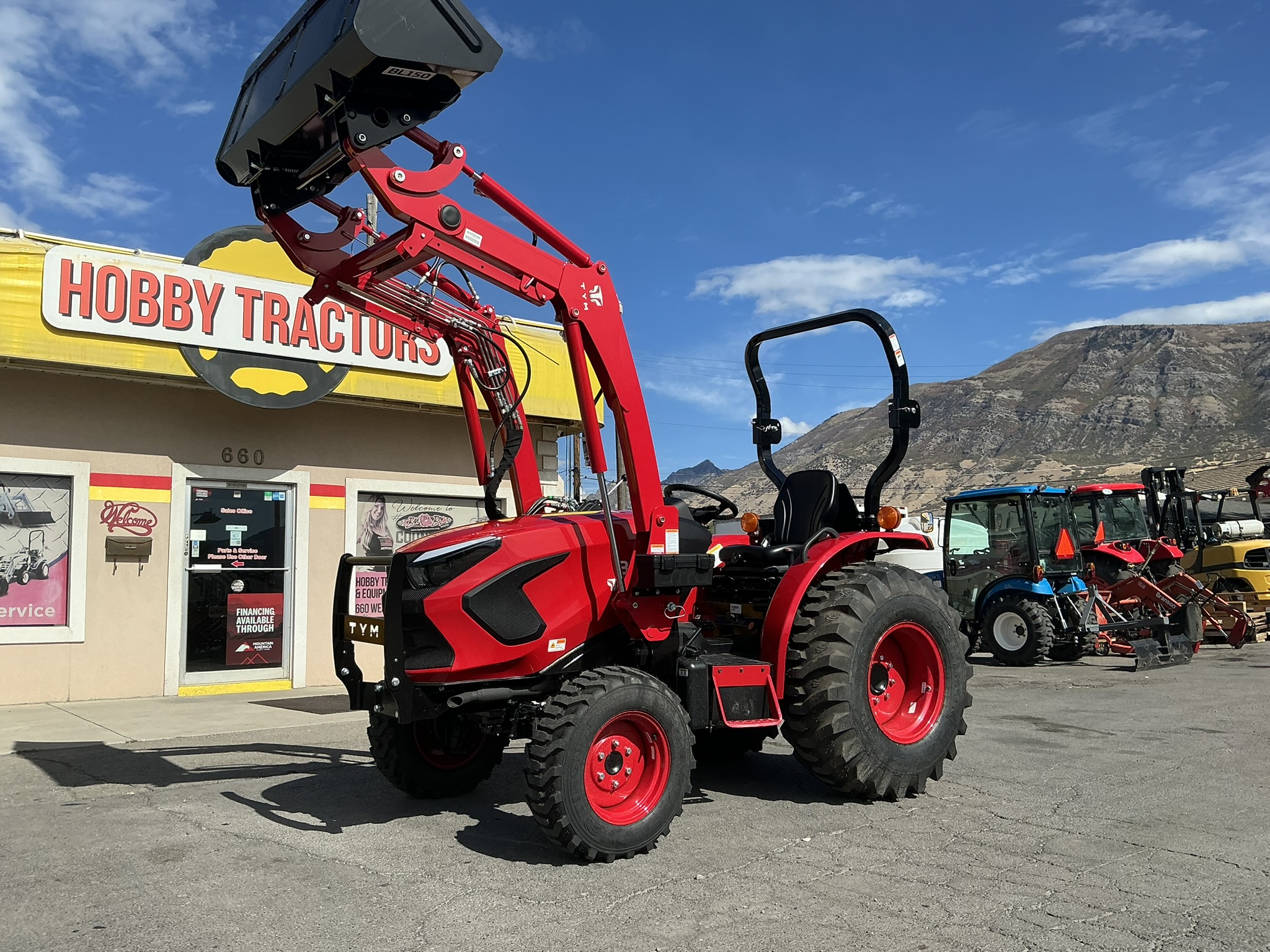

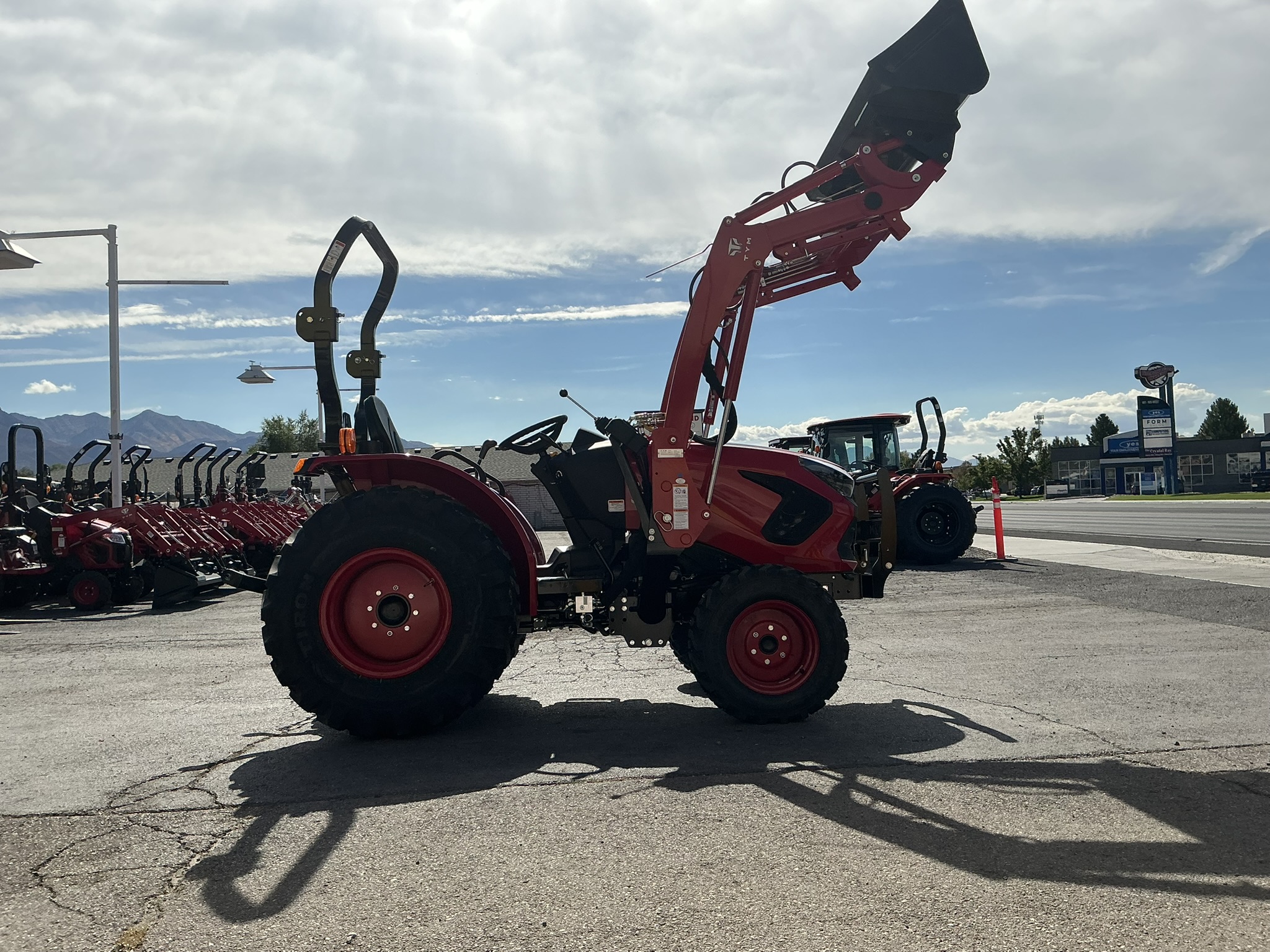

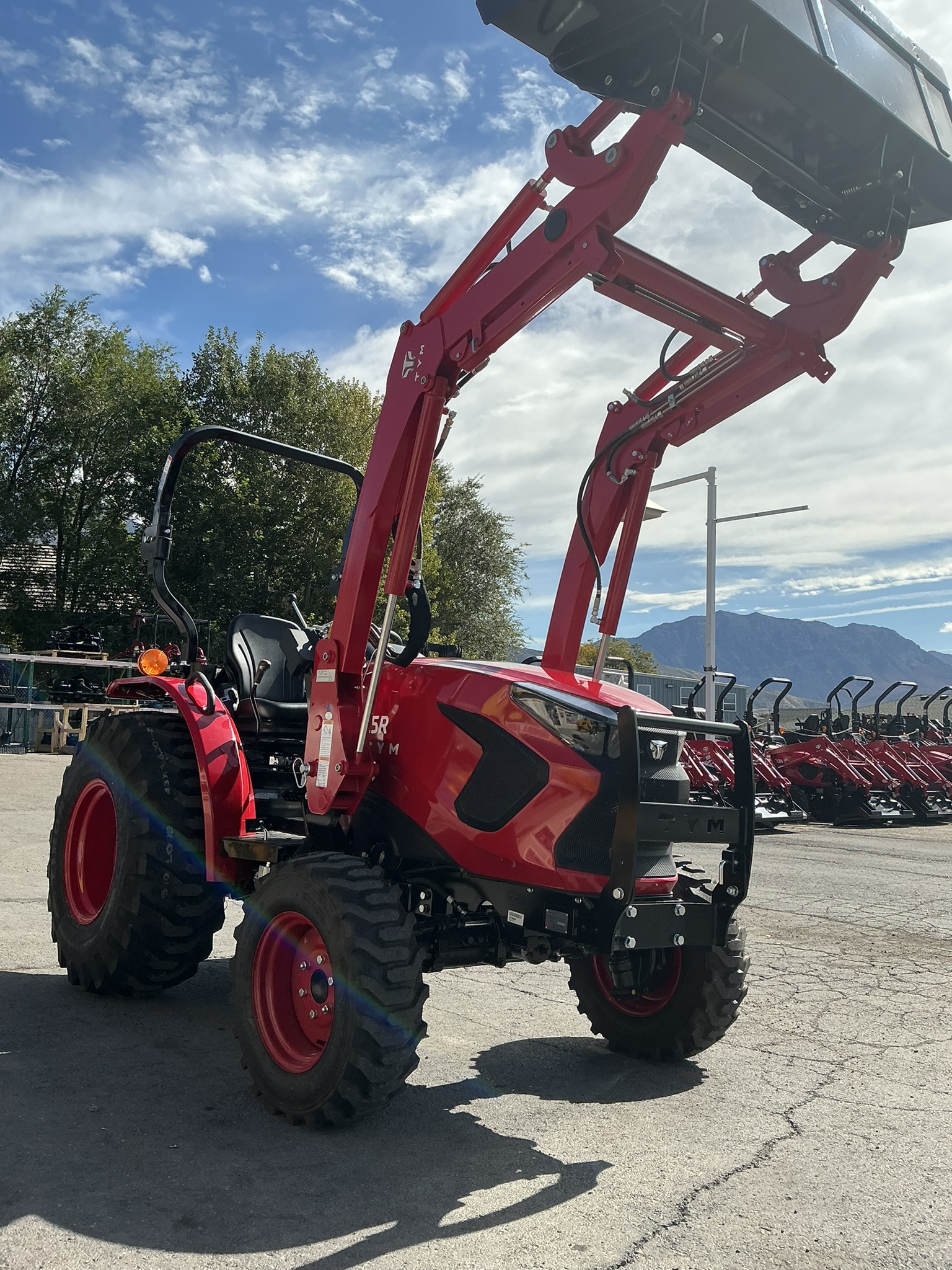

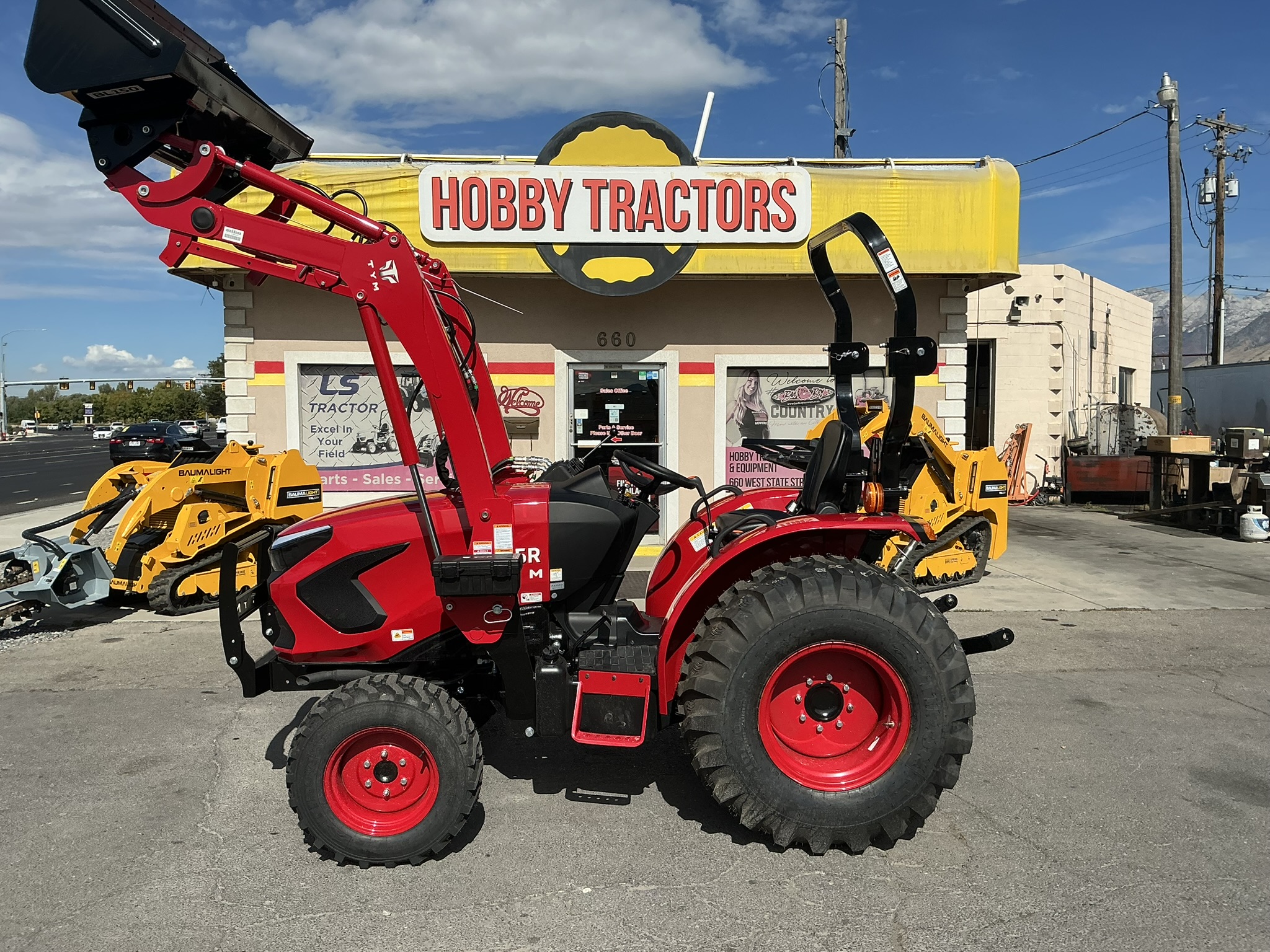

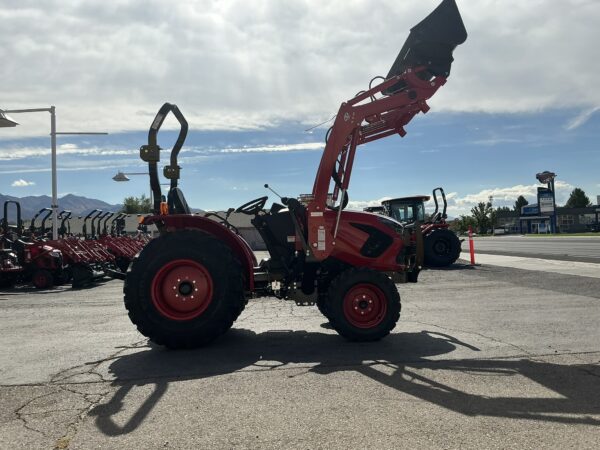

New TYM 3515R Tractor and Loader
Cash Price $24,995
Financing Price $26,245
(Does Not Included Taxes or Trades)
Great for lifting bales, small farms, maintaining property, gardening and much more!
Dare to compare to John Deere, Kubota, New Holland and Case!
35 Horsepower
Diesel Engine
4 Wheel Drive

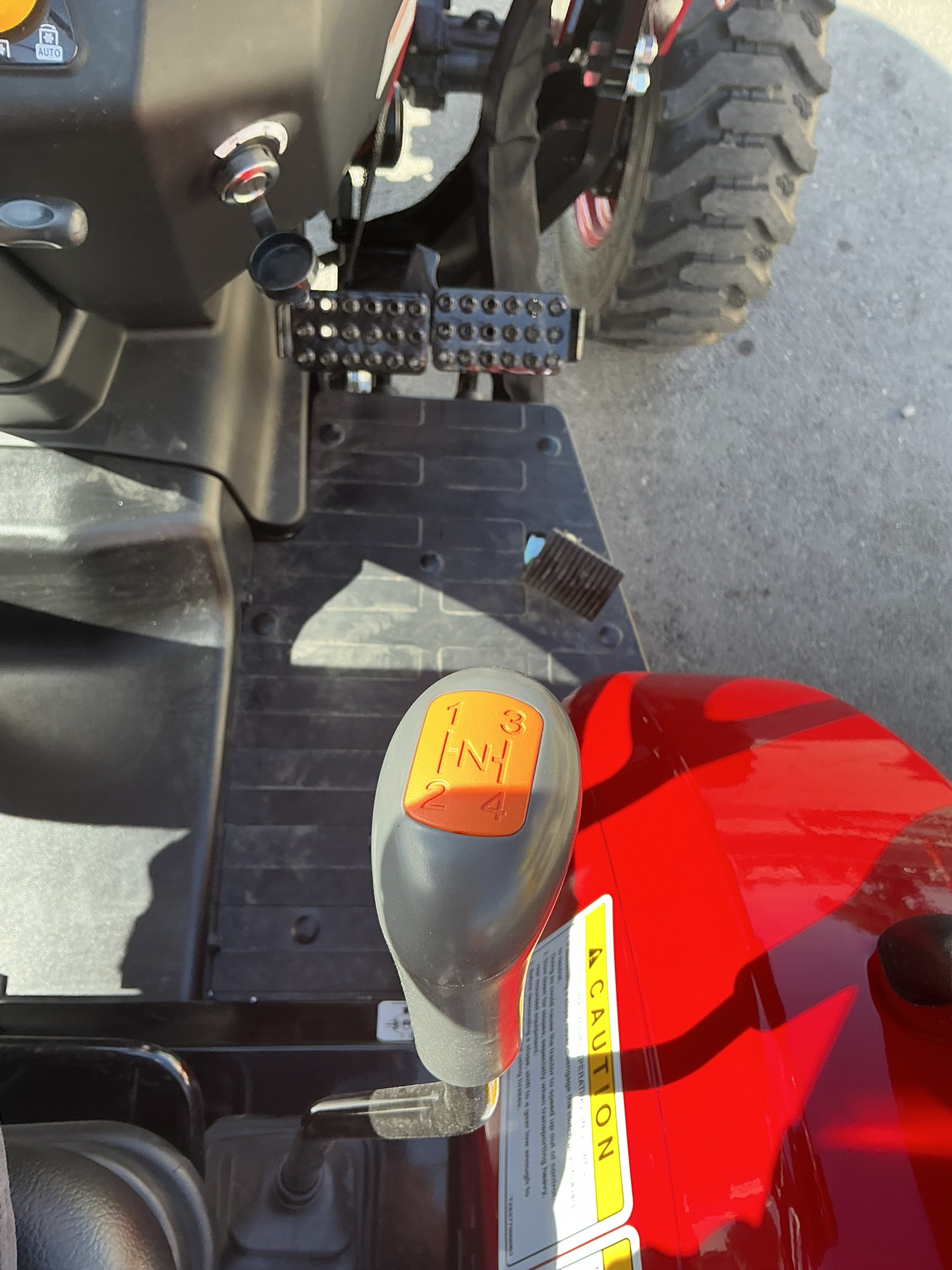

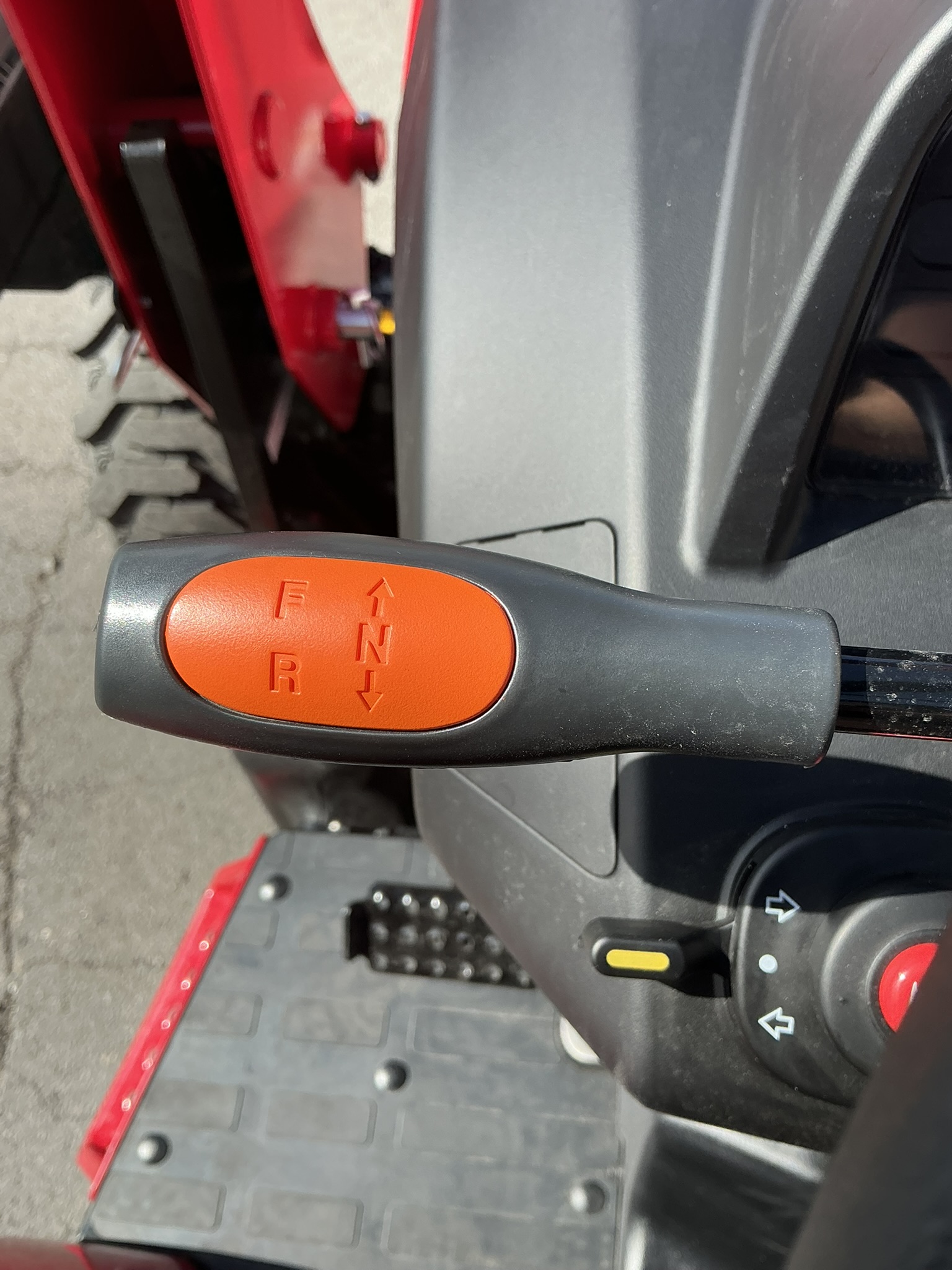

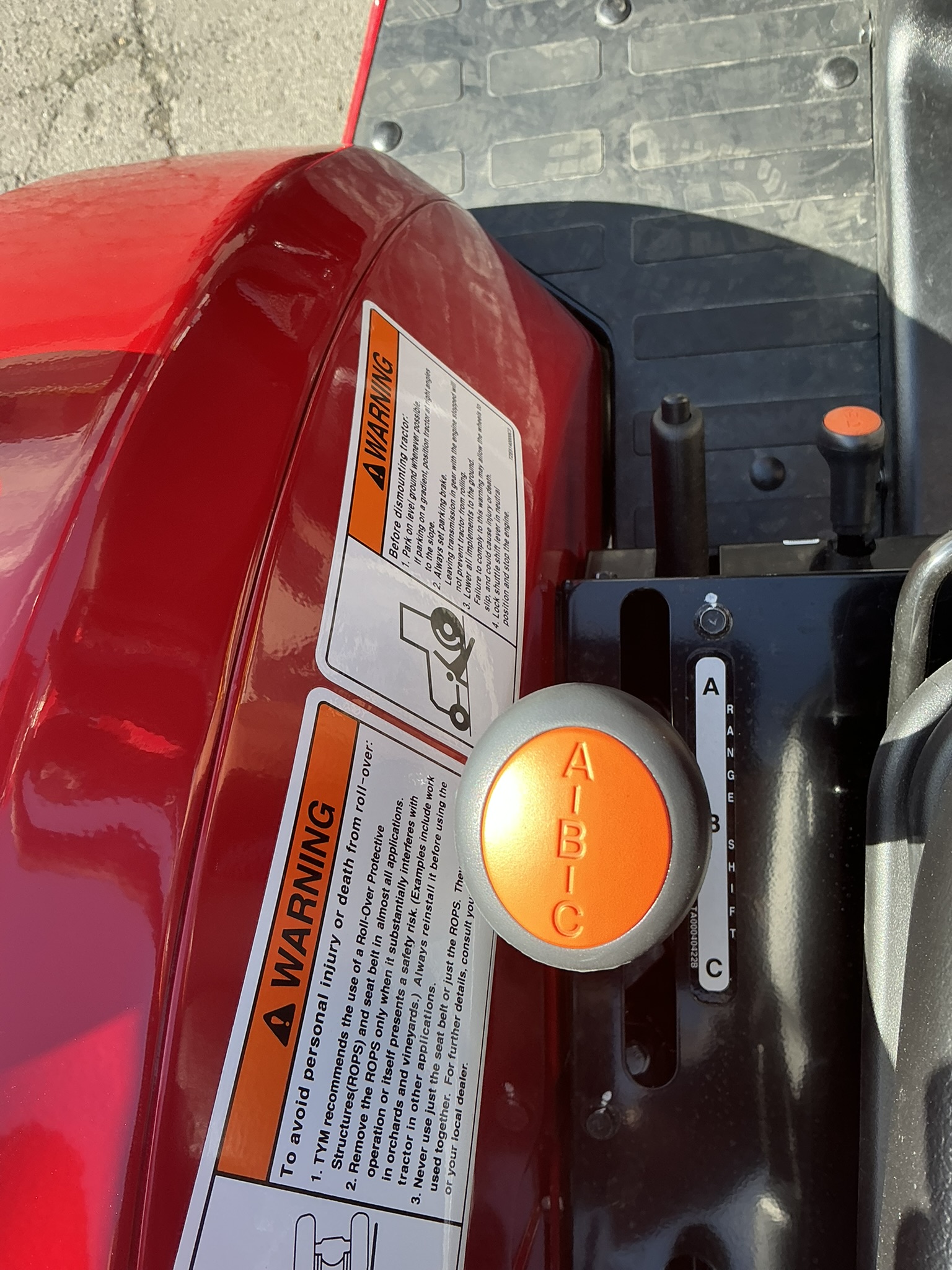

Shuttle Shift Transmission
12Fx12R

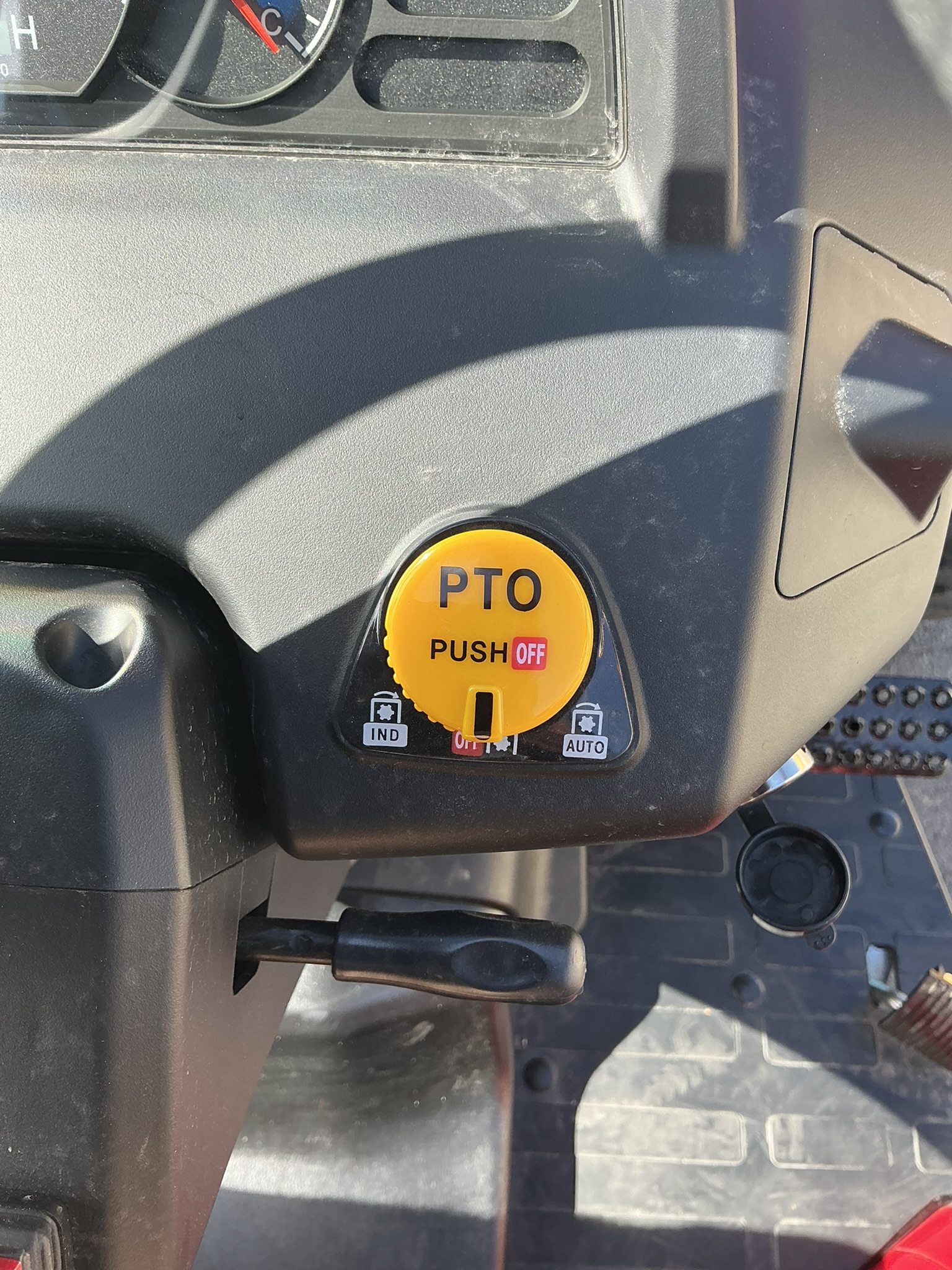

Push Button PTO

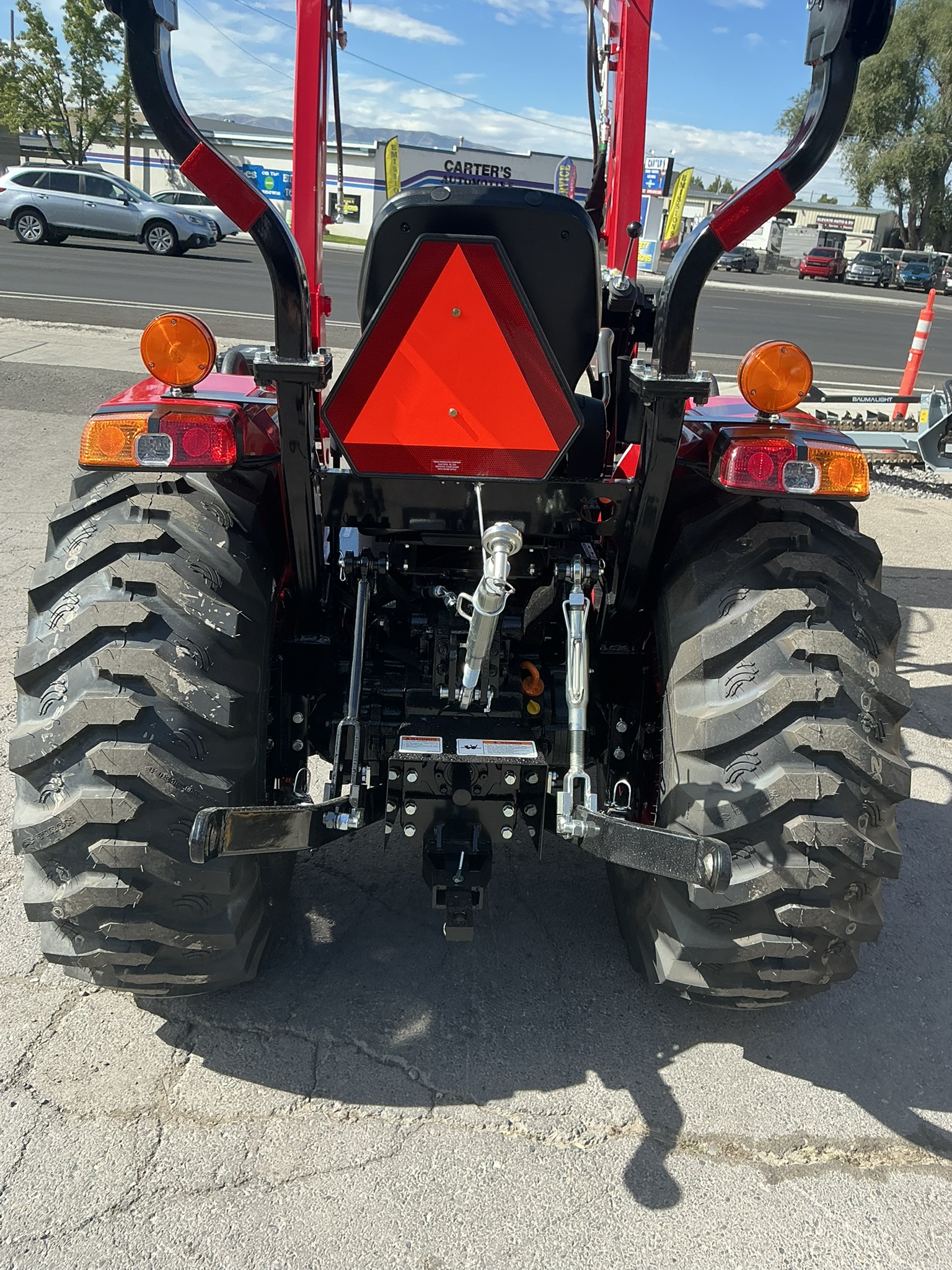

Category One 3 Point Hitch
Extendable Links
Sway Links
2,200 Pounds Lifting Capacity AT FULL HEIGHT

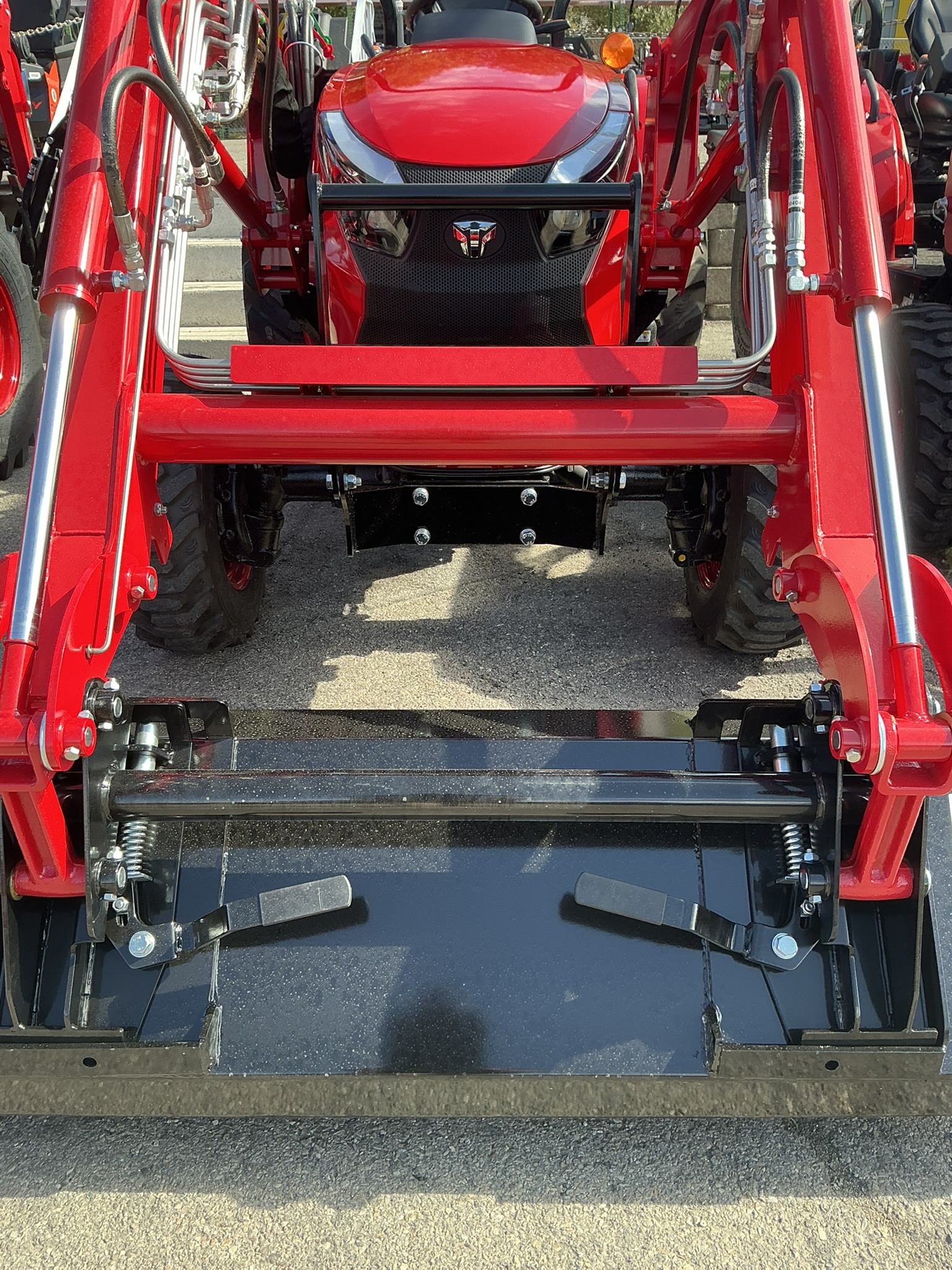

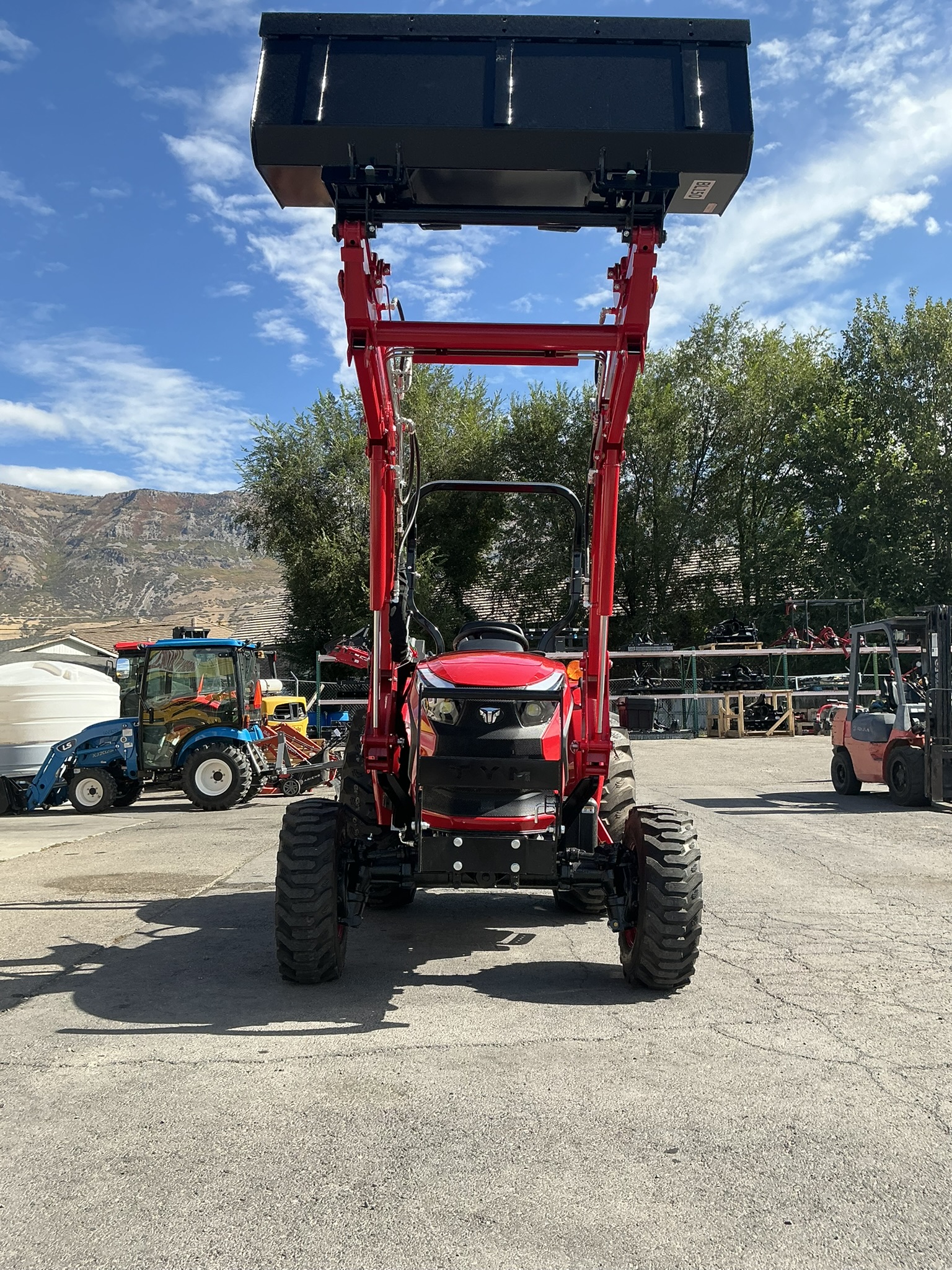

Skid Steer Style Loader
6 Year Warranty AT NO ADDITIONAL CHARGE
|
3515R |
|
|---|---|
|
ENGINE
|
|
| Engine manufacturer | TYM A1700N2 IDI |
| Type | Natural Aspiration |
| Gross engine power | 35 hp | 26.2 kW |
| PTO power | 30 hp | 22.5 kW |
| Rated engine speed | 2600 rpm |
| No. of cylinders | 3 |
| Displacement | 104.5 cu. in. |
| Air cleaner | Dry Element |
| Alternator | 12V, 50A |
| Fuel system | IDI |
|
POWERTRAIN
|
|
| Transmission type | Synchromesh |
| No. of speeds | F12xR12 |
| Max. traveling speed | 14.4 mph |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic |
| Clutch | Dry Single Plate |
|
HYDRAULIC SYSTEM
|
|
| Pump type | Single Gear Pump |
| Implement flow | 4.3 gpm |
| Steering flow | 8 gpm |
| Total flow | 12.3 gpm |
| Category, 3-point hitch | I |
| Hitch lift capacity | 3306 lb |
| Hitch lift capacity at 24 inches behind link ends | 2425 lb |
| Lift control type | Position |
| No. of standard remote valves | Optional (Up to 4) |
|
PTO
|
|
| PTO type | Independent |
| PTO control | Wet, Multi-disc |
| PTO rear | 560 rpm |
|
CAPACITIES
|
|
| Fuel tank | 7.1 gal |
| Coolant | 5.28 qt |
| Crankcase | |
| Transmission/Hydraulics system | 8.9 gal |
| Front axle | 1.7 qt |
|
DIMENSIONS & WEIGHTS
|
|
| Overall length with 3-point hitch | 120.9 in. |
| Overall width | 56.3 in. |
| Wheelbase | 65.7 in. |
| Height to top of ROPS | 97.3 in. |
| Min. ground clearance | 14.4 in. |
| Min. turn radius with brakes | 7.51 in |
| Min. turn radius without brakes | 8.5 ft |
| Weight with ROPS | 3183 lb |
|
STANDARD TIRES
|
|
| R1 Agricultural – Front | 8-16 |
| R1 Agricultural – Rear | 12.4-24 |
| R4 Industrial – Front | 28×8.50-15 |
| R4 Industrial – Rear | 43×16.00-20 |
| Location | Pleasant Grove, Roosevelt |
|---|---|
| Make | TYM Tractors |
| Equipment Year | 2025 |
| Equipment Type | Tractor |
| Color | Red |
